UHT PROCESSING SYSTEM BY APV CREPACO

$0.00

SKU: 12-366-UM Categories: ,

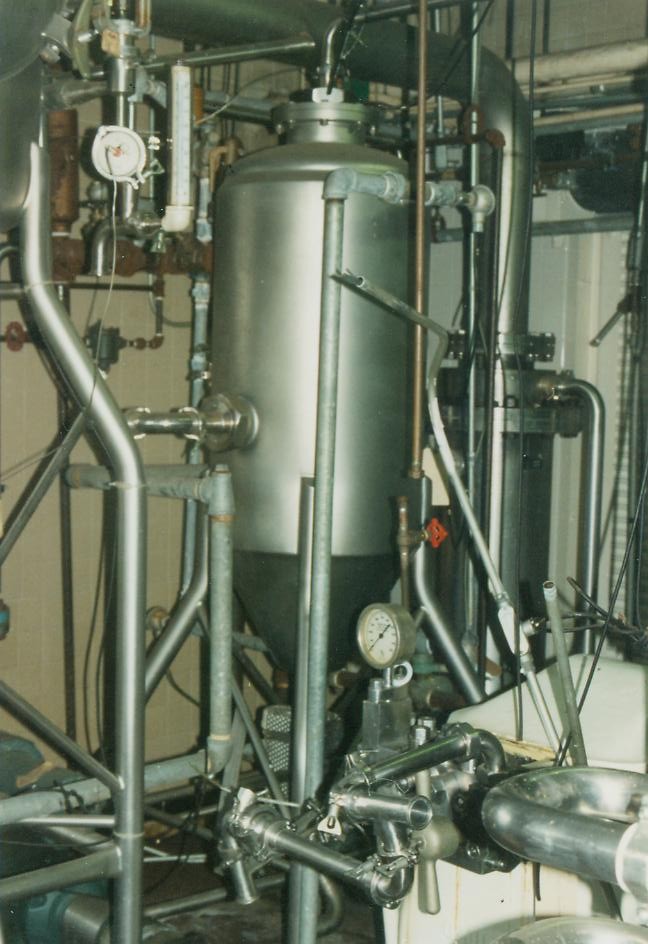

UHT PROCESSING SYSTEM, MFG BY APV CREPACO, MODEL 1000 FLASH CHAMBER PROCESSING SYSTEM, S/N C-9737 (FC), ORDER #28-41449, CAPACITY 600 GPH, INCLUDES S/S FLASH CHAMBER, NAT. BOARD #5482, INTERNAL PRESSURE 60 PSI AT 325 F. CHAMBER IS 9’6″ HIGH, VESSEL IS 32″ DIA. X 32″ STRAIGHT SIDE, 6″ DIA. DISCHARGE LEG TO 3″ CENTRIFUGAL PUMP INLET, 20″ DIA. 6 BOLT MANHOLE DOOR ON FRONT. 8″ DIA. VAPOR CONDENSING LEG. VAPOR DISCHARGES FLASH CHAMBER TO “TOPLINE” VERTICAL S/S WATER CONDENSER, MODEL 262-4, S/N 6294, 20′ DIA. X 70″ HIGH ON LEGS, CONNECTED TO NASH VACUUM PUMP. CENTER OF SYSTEM INCLUDES S/S STEAM INFUSION VESSEL, INTERNAL 75 PSI AT 325 F, JACKET 10 PSI AT 60 F, S/N C9765, CONICAL VESSEL IS 22″ DIA. X 6′ LONG, 8′ OVERALL ;HEIGHT, PRODUCT CENTRIFUGAL DISCHARGE PUMP FROM FLASH CHAMBER IS CREPACO SIZE 6, 1 HP, 1750 RPM, CENTRIFUGAL PRODUCT PUMP IS CREPACO MODEL 3R POSITIVE PUMP, SPEED DRIVE, ADDITIONAL 2 CENTRIFUGAL PUMPS INCLUDE 3 & 5 HP, 3500 RPM CREPACO SIZE 6. ;CONTROLS ARE CUSTOM DESIGNED BY IME, WITH NEW INSTRUMENTS HOUSED IN S/S ENCLOSURE. STEAM VALVES & CULINARY STEAM COMPONENTS INCLUDED. PKG. INCLUDES HTST PLATE PRE-HEAT SYSTEM & HOMOGENIZER. UNIT OFFERED SKID MOUNTED AND PRE-PIPED. LOCAL ELECTRICAL AND PLUMBING WILL BE NECESSARY.

Reference Number: 12-366-UM

Description

UHT PROCESSING SYSTEM, MFG BY APV CREPACO, MODEL 1000 FLASH CHAMBER PROCESSING SYSTEM, S/N C-9737 (FC), ORDER #28-41449, CAPACITY 600 GPH, INCLUDES S/S FLASH CHAMBER, NAT. BOARD #5482, INTERNAL PRESSURE 60 PSI AT 325 F. CHAMBER IS 9’6″ HIGH, VESSEL IS 32″ DIA. X 32″ STRAIGHT SIDE, 6″ DIA. DISCHARGE LEG TO 3″ CENTRIFUGAL PUMP INLET, 20″ DIA. 6 BOLT MANHOLE DOOR ON FRONT. 8″ DIA. VAPOR CONDENSING LEG. VAPOR DISCHARGES FLASH CHAMBER TO “TOPLINE” VERTICAL S/S WATER CONDENSER, MODEL 262-4, S/N 6294, 20′ DIA. X 70″ HIGH ON LEGS, CONNECTED TO NASH VACUUM PUMP. CENTER OF SYSTEM INCLUDES S/S STEAM INFUSION VESSEL, INTERNAL 75 PSI AT 325 F, JACKET 10 PSI AT 60 F, S/N C9765, CONICAL VESSEL IS 22″ DIA. X 6′ LONG, 8′ OVERALL ;HEIGHT, PRODUCT CENTRIFUGAL DISCHARGE PUMP FROM FLASH CHAMBER IS CREPACO SIZE 6, 1 HP, 1750 RPM, CENTRIFUGAL PRODUCT PUMP IS CREPACO MODEL 3R POSITIVE PUMP, SPEED DRIVE, ADDITIONAL 2 CENTRIFUGAL PUMPS INCLUDE 3 & 5 HP, 3500 RPM CREPACO SIZE 6. ;CONTROLS ARE CUSTOM DESIGNED BY IME, WITH NEW INSTRUMENTS HOUSED IN S/S ENCLOSURE. STEAM VALVES & CULINARY STEAM COMPONENTS INCLUDED. PKG. INCLUDES HTST PLATE PRE-HEAT SYSTEM & HOMOGENIZER. UNIT OFFERED SKID MOUNTED AND PRE-PIPED. LOCAL ELECTRICAL AND PLUMBING WILL BE NECESSARY.
