FITZPATRICK FLUID BED DRYER

FITZPATRICK FLUID BED DRYER

SKU: 21-454-BL Category:

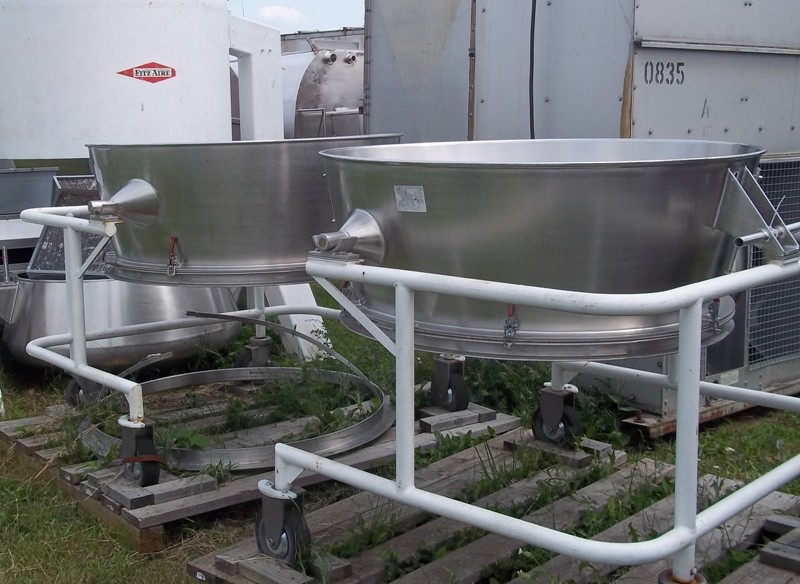

FITZPATRICK FLUID BED DRYER, MODEL FA-20, CAPACITY APPROX. 300 LBS/HR., INCLUDES (1) 19.9 CU. FT. S/S PRODUCT CONTAINER MOUNTED ON CASTERS, S/S UPPER & LOWER PLENUMS AND S/S HEATER HOUSING. MILD STEEL MAIN FRAME & FAN HOUSING, COPPER STEAM HEATING COIL, 3 HP HYDRAULIC PUMP FOR HOUSING LIFT & AGITATOR MOTOR, 40 HP FAN MOTOR, REQUIRES APPROX. 60 PSI STEAM PRESSURE. OVERALL SIZE 110″ LONG X 86″ WIDE X 102″ HIGH WITHOUT FAN.

Reference Number: 21-454-BL
